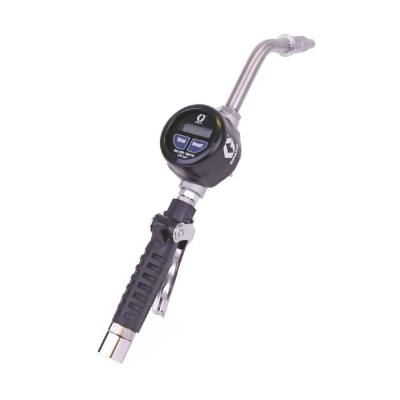

The EM Series features a robust design at an affordable price. Graco's legacy valve handle features a long-life valve design for years of dependable service. These meters are weather-rated and impact-resistant to withstand the harshest shop conditions.
APPLICATIONS
- Automotive Dealerships
- Service & Fast Lube Centers
- Lube Trucks
- Mining
- Heavy-Duty Dealerships
- Fleet Service Facilities
- In-Plant
FLUIDS
- Petroleum & Synthetic-Based Oils
(Motor, Gear, & ATF) - Antifreeze
| COMPATIBLE MATERIALS | oil, antifreeze |
| DISPENSE TYPE | manual |
| DISPLAY TYPE | electronic |
| EXTENSION TYPE | rigid / flex |
| FLUID INLET | 1/2" NPT(f) |
| FLOW RATE | 0.25-8 gpm |
| MAX OPERATING TEMPERATURE | 180°F |
| MAX RECORDED DISPENSE | 19999 |
| MAX WORKING PRESSURE | 1,500 psi |
| METER ACCURACY | +/- 0.5 |
| WETTED MATERIALS | aluminum, stainless steel, carbon steel, acetal, nitrile rubber, Geolast |
| UNIT OF MEASURE | quart, pint, liter, gallon |
| TRIGGER PROTECTION TYPE | lock off button |
| TRIGGER LOCK | locking |
| RECOMMENDED ENVIRONMENT | indoor/outdoor |
| OUTLET | 3/4" ORB |
| NOZZLE TYPE | manual |
| POWER SOURCE | 2 AAA batteries |
| APPROVALS | CE |
| IP RATING | 69k |
| METER PRESSURE LOSS | 30 psi @ 6 gpm |
| METER TECHNOLOGY | oval gear |
