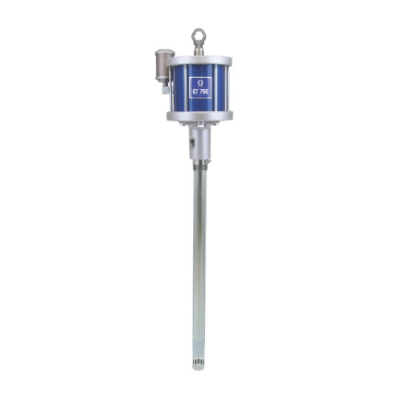

The GT 750 pump was engineered to perform in challenger applications and changing environments. The large 7.5" air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.
APPLICATIONS
- Lube Trucks
- Mining
- Heavy-Duty Dealerships
- Fleet Service Facilities
- In-Plant
FLUIDS
| TYPE | Pneumatic Piston Pump |
|---|
| AIR INLET SIZE (CM) | 1.27 |
|---|
| AIR INLET SIZE (IN) | 0.5 |
|---|
| AIR INLET SIZE (MM) | 12.7 |
|---|
| AIR INLET THREAD GENDER | Female |
|---|
| AIR INLET THREAD TYPE | NPT |
|---|
| AIR MOTOR EFFECTIVE DIAMETER (IN) | 7.5 |
|---|
| APPLICATION | Grease |
|---|
| COMPATIBLE MATERIAL | Grease |
|---|
| FLUID INLET THREAD TYPE | NPT |
|---|
| FLUID INLET TYPE | NPT, NPT, NPT, NPT |
|---|
| FLUID OUTLET SIZE (CM) | 2.54 |
|---|
| FLUID OUTLET SIZE (IN) | 1 |
|---|
| FLUID OUTLET SIZE (MM) | 25.4 |
|---|
| FLUID OUTLET THREAD GENDER | Female |
|---|
| FLUID OUTLET THREAD TYPE | NPT |
|---|
| FOR USE WITH | 润滑脂直至 NLGI 2, 最大 NLGI 2 までグリース可能, Grease up to NLGI 2, 최대 NLGI 2까지 윤활 |
|---|
| INCLUDES | 2 英寸安装适配器和吊环, 2 インチバングアダプターとリフトリング, 2 Inch Bung Adapter and Lift Ring, 2인치 마개 어댑터 및 리프트 링, 400 磅下缸体, 400 lb (181 kg) Lower |
|---|
| MAXIMUM AIR CONSUMPTION (SCFM) | 130 |
|---|
| MAXIMUM AIR INLET PRESSURE (BAR) | 6.9 |
|---|
| MAXIMUM AIR INLET PRESSURE (KPA) | 690 |
|---|
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
|---|
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 60 |
|---|
| MAXIMUM WORKING PRESSURE (BAR) | 248.2 |
|---|
| MAXIMUM WORKING PRESSURE (KPA) | 24820 |
|---|
| MAXIMUM WORKING PRESSURE (PSI) | 3600 |
|---|
| MODEL | GT 750 |
|---|
| PUMP RATIO | 36:1 |
|---|
| SOUND POWER LEVEL (DB(A)) | 77.2 |
|---|
| SOUND PRESSURE LEVEL (DB(A)) | 70.5 |
|---|
| WEIGHT (LB) | 59 |
|---|
| WEIGHT (KG) | 2.6786 |
|---|
| MAXIMUM WORKING PRESSURE (MPA) | 24.8 |
|---|
| OUTPUT PER CYCLE (CM³) | 180 |
|---|
