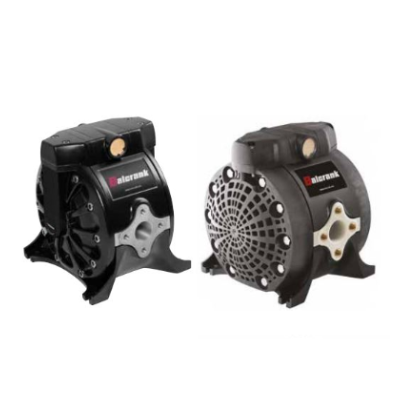

CenterFlo pumps can handle a wide range of fluids used for vehicle service. Typical applications are transferring, dispensing, and evacuation up to 28 gal/min. They can be used as stand-alone pumps for transfer applications or as systems pumps that include hose reels.
| AIR INLET | 3/8" NPSM(f) |
| FLUID INLET PORT | |
| 1120-026A / 1120-040 | 1" NPT(f) |
| 1120-031A | 1" BSPP(f) |
| FLUID OUTLET PORT | |
| 1120-026A / 1120-040 | 1" NPT(f) |
| 1120-031A | 1" BSPP(f) |
| MAX FREE FLOW | 28 gpm |
| OPERATING AIR PRESSURE RANGE | 22–102 psi |
| SOLIDS IN SUSPENSION | 3/16" |
| WETTED MATERIALS | |
| 1120-026A / 1120-031A | PTFE (teflon), Viton, polypropylene, stainless steel, Hytrel |
| 1120-040 | aluminum, acetal teflon, Buna-N, Hytrel, and stainless steel |
| RECOMMENDED FLUIDS | |
| 1120-026A | windshield wash solution |
| 1120-040 | light viscosity fluids, synthetic, mineral oils, anti-freeze, and used oil |
| 1120-031a | diesel exhaust fluid |
RECOMMENDED APPLICATIONS
| fluid dispensing, transfer, evacuation, and distribution systems |
** Balcrank does not recommend pumping windshield wash or any other fluid below 100° flash point.
