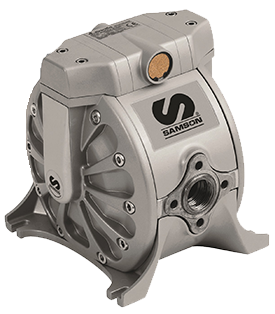

SAMSON 1" DF100 DIAPHRAGM PUMP FOR AF / WWF 28 gpm Aluminum
| Pump Pressure Ratio | 1:1 |
| Maximum Free Flow Rate | 28 gpm (100 l/min) |
| Maximum Suction Lift | 23" (7 m) |
| Minimum Air Pressure | 22 psi (1.5 bar) |
| Maximum Air Pressure | 115 psi (8 bar) |
| Max size Solid Suspension | 3/16" (4 mm) |
| Air inlet | 3/8" NPT(F) |
| Fluid Outlet | 1" NPT(F) |
| 551 164A | 1" BSPP |
| Fluid Inlet | 1" NPT(F) |
| 551 164A | 1" BSPP |
| Wetted Materials | Polypropylene / Buna-N / Aluminum / Hytrel /
Stainless Steel / Acetal |
| Mounting Footprint | 8 1/2" x 8 37/64" Poly
8 1/2" x 6 19/64" Metal |
