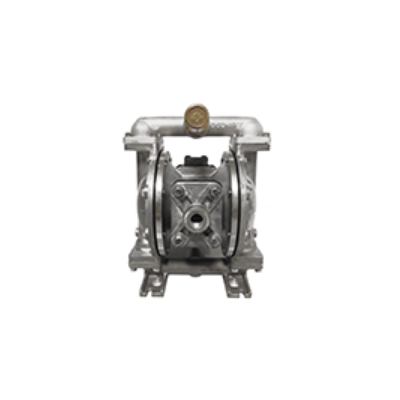

CONVENTIONAL 1" DIAPHRAGM PUMP

Availability: Stocked by RJA

Usually Ships In

1-2 Business Days
Item #: BAL-1120-013A

  • Stall resistant design
  • Modular air motor/fluid sections
  • Pressure differential in the air chambers to alternately create suction
  • Positive fluid pressure in fluid chambers
  • Ball checks insure a positive flow of fluid
  • Externally serviceable after pump is installed
  • Patented cross-drilled pressure ports
  • Lube and ice-free





    The Balcrank UL Listed pump for pumping light viscosity fluids, offers volume delivery at low air pressures and easy self-priming. This model is designed specifically for transfer, bulk unloading or loading and diesel fueling applications. It includes a pressure relief valve (per UL Specification 79) which restricts the fluid outlet pressure to less than 50 PSI. The relief valve can be plumbed to return the bleed off fluid to the storage container.

    AIR INLET1/2" NPT(f)
    FLUID INLET1" NPT(f)
    FLUID OUTLET1" NPT(f)
    MAX FREE FLOW45 gpm
    AIR PRESSURE RANGE20-100 psi
    MAX SOLID SUSPENSION1/4"
    WETTED MATERIALSaluminum, polypropylene, Buna-N
